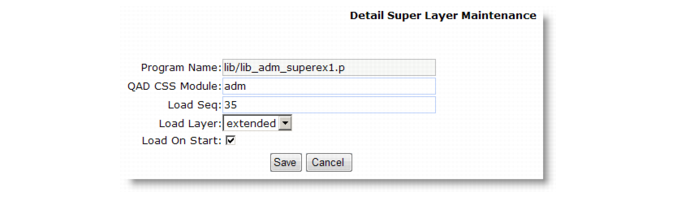

Adding a Super Layer Entry The Add function of Super Layer Maintenance lets an administrator add custom super layer documents and associate them with specific QAD CSS pages. The following information is required to complete this process: • The name and module of the super layer • The load sequence and layer • Whether this super layer is to load on start of the QAD CSS agents To create an entry: 1 Click Add in the navigation window to display the edit screen in Add mode. 2 Enter data into the appropriate fields. 3 Click Add in the edit window to save the record. Detail Super Layer Maintenance Program Name The physical file name of the QAD CSS program. QAD CSS Module QAD CSS category code used to group related functions. Load Sequence Order that the corresponding program is loaded into the layer. Load Layer Specify the layer where the corresponding program is placed. Choices are: • Extended • User Interface • Adapter Load on Start Instructs QAD CSS to load this module into the layers upon system startup. Clicking a command button executes one of the following actions: • Add saves the new record to the database. Make sure that all required fields—indicated by alternate field color—are populated before you save a record. Before saving, the system verifies that the record is unique and displays an error if it is not. • Cancel closes the window without adding the record.
