Dynamic Temp-Table Map Maintenance

The QAD CSS platform is designed as an N-tier modular architecture. The message component provides communication between the objects in each tier. Each message is defined as data forms (Progress temp tables). Dynamic Temp-Table Map Maintenance lets developers define those data forms.

Note: Dynamic Temp-Table Map Maintenance is a developer-specific maintenance function in QAD CSS. A thorough understanding of QAD CSS development methodology is recommended before changing this section.

By default, this program is not available on the menu system. To add it, complete these steps:

1	Change the setting of On Menu in System Module Maintenance to Yes.

2	Use Menu Maintenance to add the program where you want it in the system. Make sure that you assign the correct security.

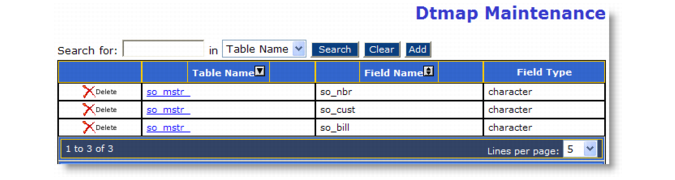

Clicking the dtmap Maintenance menu option displays the screen in Dynamic Temp-Table Map (dtmap) Maintenance.

Dynamic Temp-Table Map (dtmap) Maintenance

Dynamic Temp-Table Map (dtmap) Maintenance Navigation summarizes the contents of the Dynamic Temp-Table Map Maintenance navigation screen.

Dynamic Temp-Table Map (dtmap) Maintenance Navigation



Column	Search	Search Type	Sort	Description	Link
Table Name	Y	Begins	Y	The data form name.	Y
Field Name	Y	Begins	Y	The field name in the data form.	N
Field Type	N	n/a	N	The data type definition of the field, such as character, integer.	N
