Super Layer Maintenance

The QAD CSS application is a collection of procedures and functions. Common procedures and functions are grouped together as architectural layers and loaded persistently on a server. The order in which these layers are loaded affects the way the application behaves and operates. Super Layer Maintenance allows developers and implementers to establish the layers and their relationships to each other.

System administrators may be required to use Super Layer Maintenance during installation or upgrades of QAD CSS modules.

Important: This function should be used only when implementing a new module or function. After successful implementation, you should remove it from the menu.

The menu location of Super Layer Maintenance is Home Menu|Administration Menu|System Control Menu|Super Layer Maintenance.

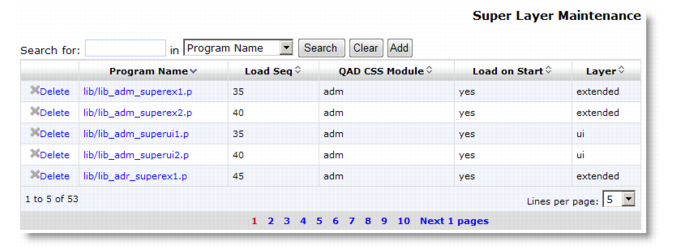

Clicking the Super Layer Maintenance menu option displays the screen in Super Layer Maintenance.

Super Layer Maintenance

Super Layer Maintenance Navigation summarizes the contents of the Super Layer Maintenance navigation screen.

Super Layer Maintenance Navigation



Column	Search	Search Type	Sort	Description	Link
Program Name	Y	Begins	Y	The physical file name of the QAD CSS program.	N
Load Sequence	Y	Equals	Y	Order that the corresponding program will be loaded into the layer.	N
QAD CSS Module	Y	Equals	Y	QAD CSS category code used to group related functions.	N
Load on Start	Y	Begins	Y	Instructs QAD CSS to load this module into the layers upon system startup.	N
Layer	Y	Equals	Y	The layer where the corresponding program will be placed: • Extended • User Interface • Adapter	N

Related QAD CSS functions:

•	Super Layer Report
