Using Edit Screens

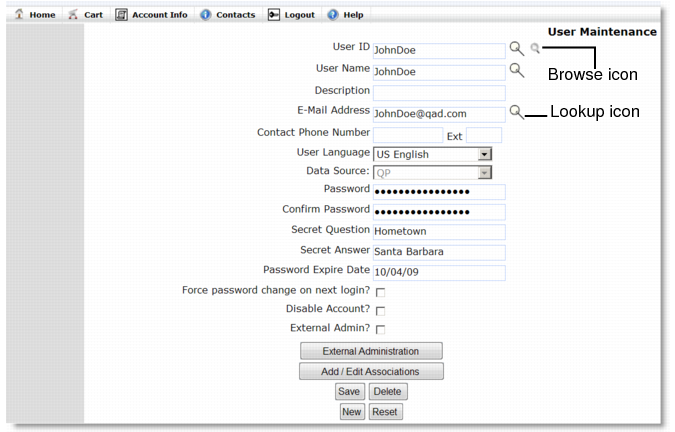

Sample Edit Screen illustrates a typical edit screen.

Sample Edit Screen

Lookup and Browse Icons

Some fields in edit screens display associated icons.

Lookup

Enter a value in the associated field and then click this icon to find the other data associated with the record. For example, enter Bob in the User ID field and click the lookup icon. The system finds the first user record with the string Bob and displays all the related data.

Browse

Click this icon to display a browse of the data defined for the associated field. All valid records display, and you can select one to use in your current edit session.

Calendar Icons

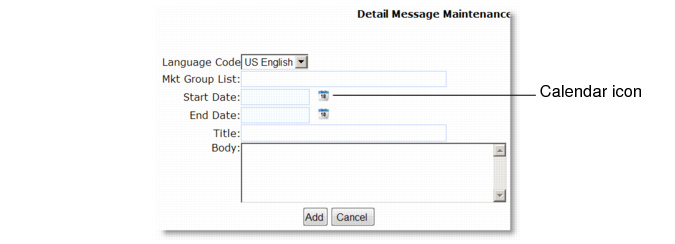

Screen with Calendar for Specifying Dates illustrates an edit screen with the calendar icon.

Screen with Calendar for Specifying Dates

Calendar icon

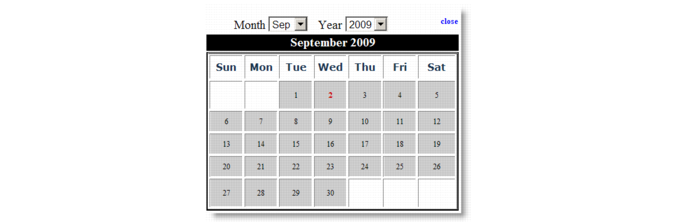

Click the calendar icon to display a calendar for selecting days and months, as shown in Calendar.

Calendar

Data Translation Icon

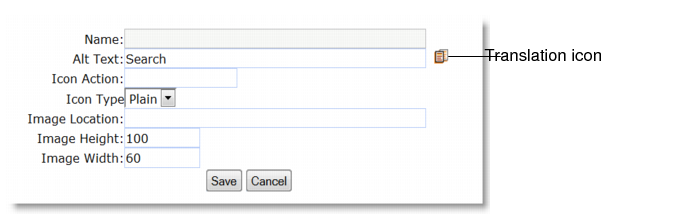

If you have a multi-language version of QAD CSS, you can use the data translation function. You can see translation icons next to the fields.

Translation Icon

Note: The default language in QAD CSS is initially set to English, but QAD CSS works with any language set as the default. Translation is allowed only from the default language. When a user is logged in using a language other than the default, the translation icon does not display.

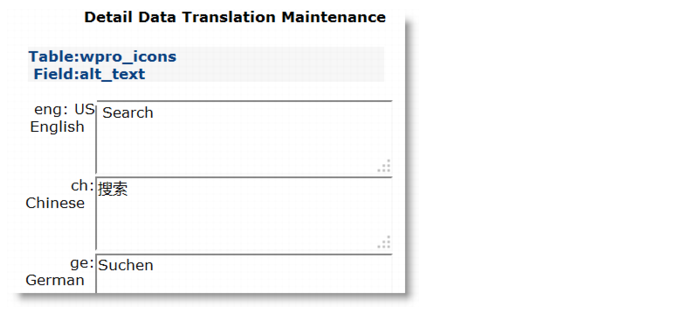

Clicking the translation icon activates a window that allows translation of the corresponding data field. See Detail Data Translation Maintenance for an example.

Detail Data Translation Maintenance

But for data translation in Menu Maintenance, the system requires that you set up string names first and then use String Translation Maintenance to add translation entries:

1	Click the translation icon next to the field.

2	In Detail Data Translation Maintenance, set string names for different language codes.

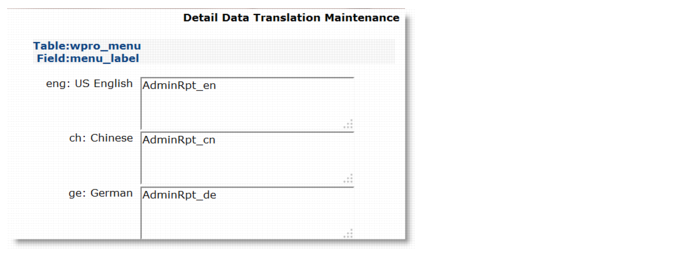

Data Translation in Menu Maintenance

3	Use String Translation Maintenance and add translation entries for the strings that you defined in the previous step.

a	Go to Home Menu|Administration Menu|Language Menu|String Translation Maintenance.

b	Add translation entries for the strings. For more details, see Adding a String Translation Entry.
